DS6000 Entry Level DMR Trunking System

Features

1. System Key Features

Dynamic Base Station Assignment

It is to dynamically assign a channel to the base station which really needs resources, enhancing the efficiency of channel utilization.

Security Functions

End-to-end encryption of voice and data Encryption with 40, 128 or 256 bits with the cryptographic systems AES and ARC4 Support of the DMRA procedure for the encryption transmission via the air interface. Radio stun function.

High System Reliability

Kirisun DMR T3 Trunking combines optimal radio coverage with intelligent redundancy design so the availability of the overall system is ensured even if an individual component fails.

- Support multi-level redundant backup of transceivers, channel controller software and switches

- Multi-level fail-soft guaranteeing the utmost communication continuity

- Free of BS controller, active-standby control channel on different transceivers

- Built-in power supply and fans in all transceivers, greatly promoting stability and heat dissipation

High Expandability

Different gateways support the interconnection between DMR trunking and other systems, such as SIP PABX, analog conventional, MPT, DMR conventional, etc.

2. System Functions

·Authentication

·Emergency Alarm

. Dynamical Group Number Assignment

·Roaming

·Handover

·Priority Call

·Queue

·Registration/ Deregistration

·Individual Cal/ Group Call/ Broadcast Call

·Group Call Late Entry/ Call Merge

·GPS

·Dynamic resource management

3. Network Management System

System Topologizing,User and group management,Configuration management,Status monitor and alarm report.

BS configuration, management and maintenance.

Authority management and performance statics

Logs: Call Logs, Message Logs, Location logs

OTAP

4. Dispatching Console

·Versatile Voice Call&Data Serives

·Various voice calls and textual/status messages between dispatching console and terminal

·User Management

·Registration to dispatching console, real-time update of network connection state of terminals

·Monitoring calls and messages between terminals

·Kill/ Disable/ Enable/ temporary group

GIS

·Multiple map modes

· Point/line-based tracking

· Time / radio ID based track query and playback

· Log of group calls, individual calls, messages, kill, disable and data query

5. Voice Recording

Recording voice from all terminals identified by caller’s ID.

6. DMR Trunking Terminals

The trunking terminals include DP990, DP995, DP770, DP970, DP975 and TM840.

Four-mode DMR trunking terminals support analog conventional mode, DMR conventional mode, MPT trunking mode and DMR trunking mode.

Trunking terminals support software upgrade from conventional to trunking mode.

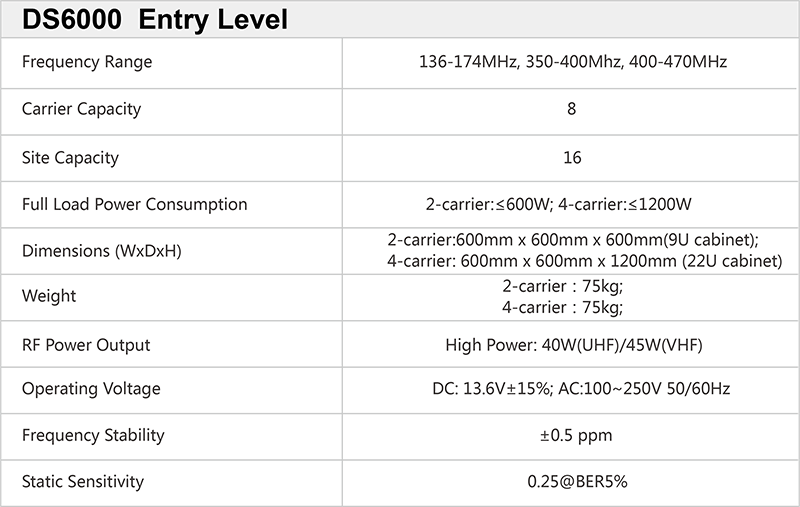

Specification
