Circuit Board Making Machine TVM802A

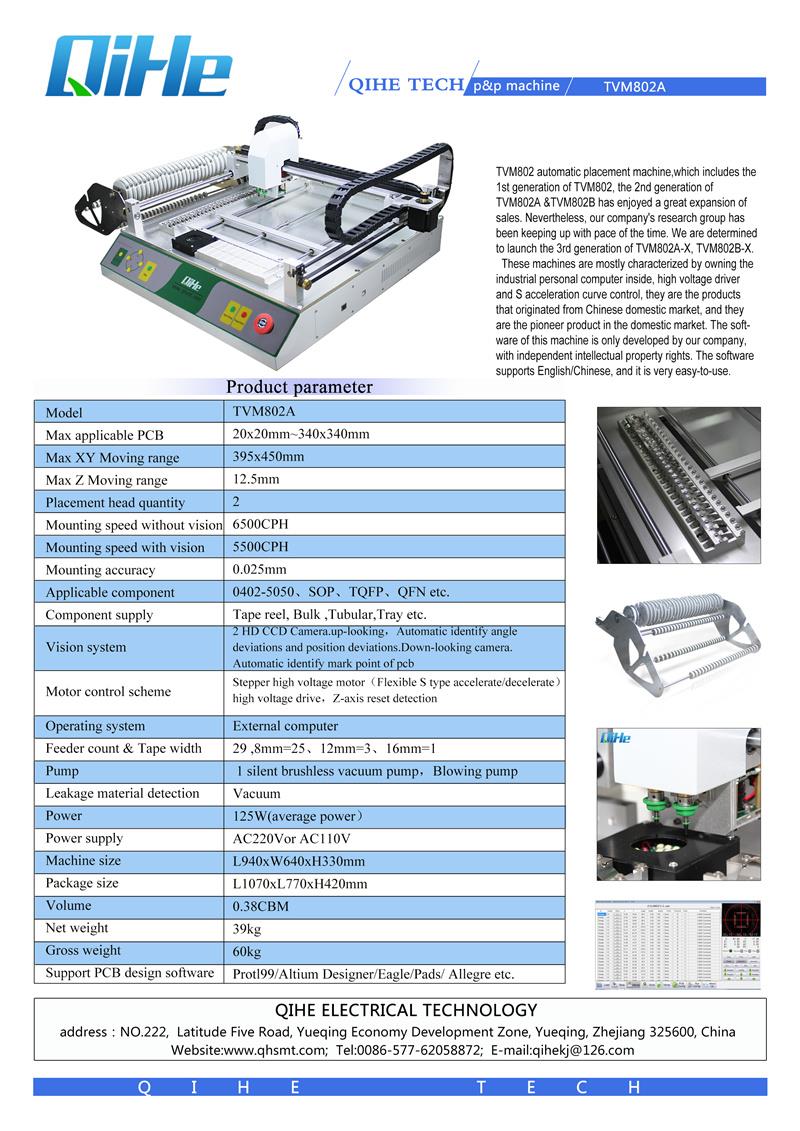

QIHE desktop pick and place machine TVM802A:
The TVM802A is basic model. It has 29pcs of feeders, use stepper motor. TVM802A is popular machine, high performance and low price. 2 placement heads and 2 HD CCD cameras make placement fast and accurate.
| Model | TVM802A |
| Max applicable PCB | 20*20mm~340*340mm |
| Max XY Moving rang | 395*450mm |
| Max Z Moving range | 12.5mm |
| Placement head quantity | 2 |
| Mounting speed without vision | 6500CPH |
| Mounting speed with vision | 5500CPH |
| Mounting accuracy | 0.025mm |
| Applicable component | 0402-5050. SOP. TQFP. QFN etc. |
| Component supply | Tape reel, Bulk, Tubular, Tray etc. |
| Vision system | 2 HDCCD Camera |
| Control scheme | Stepper high voltage drive, Z-axis reset detection |
| Feeder count & Tape width | 29 , 8mm=25pcs, 12mm=3pcs, 16mm=1pc |
| Pump | 1 silent brushless vacuum pump, Blowing pump |
| Leakage material detection | Vacuum |
| Power | 125W(average power) |
| Power supply | AC220V or AC110V |
| Machine size | L940*W640*H330mm |
| Package size | L1070*W770*H420mm |
| Volume | 0.38CBM |
| Net weight | 39kg |
| Gross weight | 60kg |
| Support PCB design software | Protl99/Altium Designer/Eagle/Pads/Allegre etc. |
